Servo vs VFD with Encoder: Selection and Training in SA

Servo vs VFD with encoder is a comparison of complete motor-control arrangements, not a universal contest between two accuracy numbers. The answer depends on the motor, drive, feedback, control mode, mechanical transmission and task. An encoder provides feedback; its presence alone does not establish that the system closes a position loop or meets a required load-position tolerance.

For South African learners, the useful first step is to separate speed control, positioning and coordinated motion. For someone requesting a quotation, describe the required movement and how it will be accepted. A drive's kilowatt rating or the word “servo” cannot replace that specification.

This site has a commercial connection to PLC Simulator. Its educational drive and program-testing activities support related learning, but they do not reproduce native vendor servo dynamics or certify equipment selection. The illustrations are conceptual scenes, not actual drive screens or measured performance results.

Begin with the required movement

Describe where the load starts, where it must finish and what happens between those points. State whether the task requires a steady speed, a repeatable stop, an absolute position, a defined trajectory or coordination with another moving axis. Include the load and the conditions under which the requirement must be satisfied.

A conveyor delivering material at a controlled speed presents different questions from a table positioning a tool. Even two positioning tables can differ in travel, payload, duty cycle, mechanical stiffness and disturbance. The application description should make those differences visible before comparing catalogue families.

Requirement	Question to resolve	Useful evidence
Speed regulation	Which speed must remain within which range?	Defined operating points and observed response
Positioning	Where is position measured and what is the tolerance?	Load-position results under stated conditions
Repeated movement	How consistent are repeated outcomes?	A documented set of repeated observations
Coordinated motion	What relationship must axes maintain?	Supported motion functions and an appropriate test
Sustained operation	What loads and duty cycle must be supported?	Reviewed motor-drive sizing and thermal evidence
Stopping and access	Which protective functions are required?	A separate safety design and validation process

The motion-control basics guide develops position, velocity, acceleration and trajectory calculations. Use that foundation to write a requirement that a supplier or instructor can evaluate.

What an encoder changes, and what it does not

Find out where the encoder is installed and which component reads it. Motor-shaft feedback can support motor control, while a separate load measurement may reveal movement after a gearbox or transmission. A position displayed by the PLC might be an interpreted feedback value, a commanded position or a calculated estimate. Label it accurately.

Next, identify which loop uses that information. Feedback used to regulate motor speed does not automatically provide the positioning behaviour required by the application. The drive, motion controller or another supported component must implement the relevant functions, with appropriate settings and limits.

Check the exact feedback interface

Record the encoder type, supported interface, supply and signal requirements from the selected products' documentation. Confirm where counts or position values are interpreted and what happens if feedback is unavailable. Do not infer compatibility because two devices both mention an encoder.

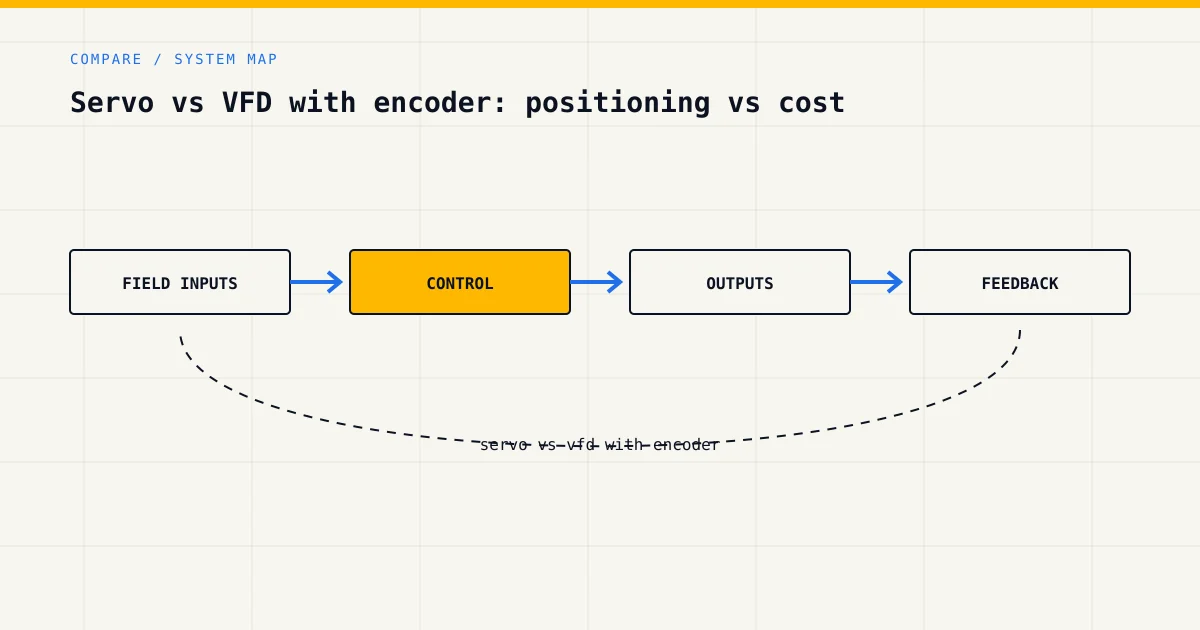

For learning, draw a simple path from command to drive, motor, transmission and load, then place the feedback sensor at its actual location. Explain which movement it observes and which mechanical effects lie outside that measurement. This exposes assumptions that a generic block labelled “closed loop” can hide.

A high-resolution measurement remains only one part of the arrangement. Installation, mechanical behaviour, reference validity and control performance still need attention. Treat those as distinct questions rather than attributing every positioning error to the drive category.

02

Positioning capability is product-specific

It is incorrect to claim that every VFD requires a hand-written PLC position loop or that AC drives cannot share a motion-programming environment with servo drives. There are concrete product examples that contradict those blanket statements.

Rockwell's PowerFlex 527 overview describes motion instructions shared with Kinetix servo drives in a Logix environment. Siemens' SIPLUS G120 CU250S-2 PN product entry lists basic positioning through EPOS with the stated extended-function licence. These examples show why the actual drive configuration matters.

They do not establish equal performance across those products, or prove that any G120, PowerFlex or Kinetix combination meets your requirement. Check supported motor types, feedback, control modes, motion functions, firmware and engineering tools for the exact proposal.

Compare the complete supported combination

A proposed servo system should identify the drive, motor, feedback, cables, controller and required options. A proposed VFD arrangement needs the same clarity about its supported components and functions. Avoid comparing a complete quotation for one option with only a drive price for the other.

Ask how the controller issues commands and receives completion, busy and fault information. Confirm which functions are executed in the drive and which are executed elsewhere. Shared programming terminology can make integration easier to understand, but it does not eliminate the need to test the supported arrangement.

Accuracy, resolution and repeatability answer different questions

Kollmorgen's encoder guidance distinguishes resolution, accuracy and repeatability, and discusses installation effects. A finely divided position value is not proof that the load reaches the desired location accurately. Likewise, repeated outcomes can be closely grouped while consistently displaced from the intended target.

State where the result is measured. A rotary shaft specification cannot be turned into a linear millimetre claim without a defined mechanical conversion. For a machine task, the position of interest may be at the tool, carriage or workpiece rather than at the motor shaft.

Fictional positioning acceptance exercise

Assume two unnamed teaching datasets both target 100.00 mm. The values below are invented observations at the load, not measurements of any servo or VFD. The fictional acceptance band is 99.90 through 100.10 mm, inclusive. It applies only to this exercise.

Attempt	Dataset A position	Dataset B position
1	99.94 mm	100.28 mm
2	100.02 mm	100.30 mm
3	100.06 mm	100.32 mm
4	99.98 mm	100.30 mm
5	100.04 mm	100.29 mm
6	99.96 mm	100.31 mm

Dataset A has a mean of 100.00 mm, an observed range of 0.12 mm and a largest absolute target error of 0.06 mm. All six observations lie within the invented acceptance band. Dataset B has a mean of 100.30 mm, an observed range of 0.04 mm and a largest absolute target error of 0.32 mm. None of its observations lies within that band.

Dataset B is more tightly grouped in this small example, yet it misses the target requirement. The observed range is simply the maximum minus the minimum in these six values. It is not a formal repeatability rating, uncertainty statement or prediction of future performance.

What this exercise does and does not prove

The exercise demonstrates why a comparison needs both target error and variation. It does not identify which drive type produced either dataset. Assigning A to a servo and B to a VFD without actual evidence would recreate the misleading comparison this guide is trying to avoid.

A real acceptance method also needs suitable measurement equipment, a defined reference, conditions and treatment of uncertainty. Specify load, approach direction, temperature where relevant and the number of observations required by the actual task. Six fictional values are useful for learning the calculation; they are not a production validation plan.

03

Compare the full cycle instead of one move time

A positioning move may be only one stage in the machine cycle. Settling or verification, processing, return movement and coordination with other equipment may also consume time. State whether the requested rate refers to one-way movement, a complete out-and-back cycle or finished products.

Do not use a universal cycles-per-minute threshold to decide between servo and VFD. The distance, load, trajectory and process can change while the reported production rate remains the same. The requirement should describe the sequence that the drive must support.

Fictional sequential cycle budget

Consider an invented teaching sequence in which all five stages happen one after another. The outbound move takes 0.40 seconds, a defined settling interval takes 0.10 seconds, processing takes 0.20 seconds, the return move takes 0.40 seconds and final verification takes 0.10 seconds. No stages overlap in this model.

Stage	Assumed duration	Elapsed time at its end
Outbound movement	0.40 s	0.40 s
Settling interval	0.10 s	0.50 s
Processing	0.20 s	0.70 s
Return movement	0.40 s	1.10 s
Final verification	0.10 s	1.20 s

The total is 1.20 seconds, corresponding to 50 complete cycles per minute if that exact sequence repeats continuously. A target of 60 cycles per minute permits only one second per complete cycle, so this fictional schedule exceeds the available time by 0.20 seconds.

Looking only at the outbound 0.40-second move would give 150 such moves per minute, but that is not the rate of this complete sequence. None of these durations is a measured vendor performance figure or a suggested settling setting.

Use the budget to ask a better question

If a proposed system misses a cycle requirement, identify which stages account for the difference. Faster travel alone may not solve a process wait or a slow verification task. Conversely, removing a settling requirement without evidence can leave the load moving when the process assumes it has arrived.

If the approved design permits overlapping operations, model that explicitly and check the dependencies. Do not subtract time merely because simultaneous operation sounds possible. The revised sequence needs its own acceptance evidence, including how abnormal conditions are handled.

Motor and drive sizing goes beyond kilowatts

A complete selection needs the required torque and speed across the duty cycle, including acceleration and deceleration. Ask the supplier to identify the assumptions used for load, transmission, friction, inertia and operating conditions. A single rated-power comparison does not describe every transient demand.

Review continuous and peak requirements separately. Include how often moves occur and how long the system remains at each operating point. The supported overload behaviour, motor cooling and environmental conditions belong in the evaluation for the actual products.

Include the mechanics in the review

A transmission changes the relationship between motor and load motion. It can also introduce limits or effects that a motor-shaft measurement does not fully describe. Obtain the mechanical specifications and identify the position at which the process tolerance applies.

Do not select a gearbox from encoder resolution alone or assume tuning removes mechanical lost motion. Ask how the proposed combination meets the required load-position behaviour. Where a model is used, document its assumptions and compare it with appropriate evidence from the intended mechanism.

Deceleration also raises questions about energy handling and the supported braking arrangement. These depend on the system and duty, so request the relevant sizing evidence. This guide does not prescribe a resistor, brake or drive setting for an unidentified machine.

04

Treat bandwidth claims carefully

A bandwidth figure needs context: which loop, which definition and which test conditions? A current-loop figure cannot be treated as the guaranteed settling time of the load. Position response also depends on the rest of the control system and the mechanics.

Request a representative response test or documented performance evidence for the proposed arrangement. Identify the command, disturbance if any, measured quantity and acceptance rule. A chart should distinguish command from feedback and show the units and time scale.

Avoid comparing one supplier's best-case number with another supplier's differently defined specification. Where evidence is missing, mark it as unknown and ask for clarification. A precise-looking table built from incompatible definitions is less useful than a clear list of unanswered questions.

Tuning is not a substitute for a suitable design

Commissioning and tuning should follow the selected equipment's procedures and the machine's authorised test plan. Changing gains can alter response and stability. A successful unloaded demonstration does not prove performance across the required load range.

For learning, use a declared model or an appropriately supervised training system. Record what was changed and what was observed. Do not present an imagined step-disturbance animation as a measured comparison of branded drive families.

Safe torque off is not a brake or electrical isolation

Siemens' S210 safety manual describes safe torque off, or STO, as preventing torque-producing energy from being supplied to the motor. It notes that a rotating motor can coast and that STO does not provide galvanic isolation. STO should not be described as a generic controlled stop or safe-direction function.

Rockwell's PowerFlex 750-Series STO manual also distinguishes the function from electrical isolation and identifies external influences such as suspended loads that may require additional measures. Removing drive torque is not evidence that a gravity-loaded mechanism will remain held in place.

Keep protective requirements separate from positioning performance

The required stopping, holding, access and restart behaviour must come from the machine's safety assessment and validated design. A product's stated safety capability does not automatically establish the achieved performance level or safety integrity of the complete function.

Use the safety PLC comparison guide to understand that distinction at a learning level. This article provides no safety wiring recipe, load-holding design or permission to approach moving equipment. Commissioning a position loop and validating protective functions are separate responsibilities.

05

Compare South African quotations on the same scope

Ask each supplier to quote against the same movement, load, duty cycle and acceptance requirements. Include the motor, drive, feedback, controller requirements, cables, options, engineering software, commissioning, training and support. Identify which parts of the existing installation can be retained with documented compatibility.

Confirm currency, tax treatment, delivery and replacement arrangements directly. There is no reliable universal four-to-one price ratio between a servo system and a VFD-with-encoder arrangement. Comparing equal kilowatt ratings without the rest of the required scope can conceal significant differences.

For a project in Gauteng, KwaZulu-Natal, the Western Cape or a remote service area, establish actual support availability and travel arrangements. The province or industry does not tell you which drive is installed or which architecture is appropriate. Ask for the equipment list and operational requirements of the specific site.

Ask for acceptance evidence in the proposal

A useful proposal identifies how the supplier will demonstrate the required behaviour and what conditions apply. Ask how positioning error, cycle time, fault recovery and configuration backups will be checked. Resolve exclusions before assuming that commissioning includes all of those tasks.

For a retrofit, identify mechanical and electrical interfaces that will change. Confirm whether existing feedback and application code can be supported. Do not assume a drive replacement is a parameter-copy exercise merely because the replacement has a similar rating.

Choose training by the task you need to perform

An introductory drive course may cover command sources, speed references and status. A positioning course should explain the selected axis configuration, reference procedure, feedback and completion conditions. A commissioning course needs an appropriate practical environment and clearly stated prerequisites.

The VSD and VFD training guide helps compare provider scope. For the surrounding PLC sequence, the motor-control learning guide develops command and state reasoning. These foundations are useful before buying specialised motion training.

For an initial exercise, inspect the browser VFD learning demo. Its educational commands and references should not be presented as native servo tuning, motor sizing or validated load dynamics.

Use PLC program-testing practice to organise expected and observed behaviour for the sequence around a motion task. Protocol-specific instructions and physical-axis performance need a supported environment that actually implements them.

Build a portfolio that shows your reasoning

Include the requirement, a labelled command-and-feedback diagram, the test method and the result. Separate fictional calculations, simulator observations and physical measurements. State what remains untested and which documentation supports the configuration.

A useful portfolio explains why a result meets a requirement or why further evidence is needed. It should not turn six successful teaching observations into a claim of professional commissioning competence or a guarantee about an entire drive family.

06

Questions learners ask about servo and encoder feedback

Can a VFD with an encoder perform positioning?

Some supported arrangements can. Verify the exact drive, feedback, control mode and positioning functions. Adding an encoder alone does not establish those capabilities or guarantee a particular tolerance.

Is a servo always more accurate than a VFD?

A meaningful comparison needs the complete systems, measurement location and operating conditions. Do not assign universal millimetre accuracy figures to either label.

Does higher encoder resolution guarantee better positioning?

No. It provides finer numerical information within the supported interface, while actual performance also depends on the measurement and control arrangement. Check target error and repeated outcomes at the relevant load location.

Can I select a drive from cycles per minute?

Use that rate together with the complete sequence, travel, load and acceptance criteria. A one-way move duration is not necessarily the complete machine cycle.

Will STO hold a vertical load?

Do not assume so. The load-holding and protective arrangement must be designed for the actual mechanism. Removing torque is not the same as applying a suitable brake or establishing electrical isolation.

What should I ask an AI assistant before buying training?

Provide your current skills, target task and exact equipment if known. Ask for a course-outcome comparison with primary documentation and unknowns marked clearly. Verify practical access and assessment directly with the provider.
