PLC Training for Pulp and Paper in South Africa

PLC training for pulp and paper should help you connect process measurements, equipment states, quality information and the program that uses them. Choose the training around a specific responsibility: maintaining an installed control project, interpreting a paper-quality profile, investigating a communication discrepancy or supporting a drive-system specialist. A general PLC course can build foundations, but it does not cover every mill system.

For a South African learner, the useful question is what you will be able to explain and test independently after the course. Ask for a practical brief rather than accepting a list of software brands as proof of relevant depth. Pulp production, papermaking, utilities and converting can create different assessment needs within the same industry.

This site is commercially connected to PLC Simulator. Its educational tools can support selected measurement, logic and feedback exercises. The examples here use fictional data, not mill settings or product specifications. The generated illustrations are conceptual learning scenes, not photographs of the named operations or screenshots of their engineering systems.

Identify the mill area and the work you want to perform

Separate process control from quality measurement and equipment coordination. A learner investigating a measured flow needs a different practical task from one maintaining a sequence or interpreting a cross-width quality profile. Those tasks can interact, but a course should explain where its assessed boundary lies.

Ask whether the training covers a new demonstration project or an unfamiliar existing project. Maintenance work benefits from finding the source of a displayed value, tracing a reported condition and understanding the site's engineering conventions. Creating a small new program is useful, but it does not automatically demonstrate those reading and diagnostic skills.

Distinguish an integrated pulp operation, a paper mill and a converting facility. A job under a paper company's name does not establish which process or equipment you will support. Read the actual responsibilities and ask which systems belong to the role, which are managed by specialists and what supervision is available.

The process control training guide can help you identify the foundation needed for measurement, trends and feedback. Use this industry guide to select a relevant question rather than assuming a generic tank exercise reproduces a pulp digester or a paper machine.

Research South African mill locations from primary sources

A 2022 government notice concerning Ngodwana Mill places the facility in Ehlanzeni District, Mpumalanga. This provides a dated geographical reference for researching a role or practical training arrangement. It does not identify today's installed controllers or prove a relationship with a course provider.

The eThekwini municipality's water and sanitation background discusses recycled water supplied for paper production at Merebank Mill. This is useful local industrial context, not a current equipment inventory. Distinguish production work from head-office, forestry and distribution roles when evaluating an opportunity.

These are examples, not a complete national employer list or vacancy forecast. When researching Richards Bay, Durban, Umkomaas or Mpumalanga, confirm the current operator, worksite and process area using current employer information. Older project stories can describe a previous configuration or a planned change, so keep their dates visible in your notes.

For a training purchase, confirm where practical sessions actually take place. A provider's service-area page is not evidence of a local laboratory. Ask about individual equipment access, travel and accommodation if needed, and whether you can practise between sessions. For employment, evaluate roster and travel terms from the actual offer rather than assuming every mill uses the same arrangement.

Separate PLC, DCS, drives and quality-control systems

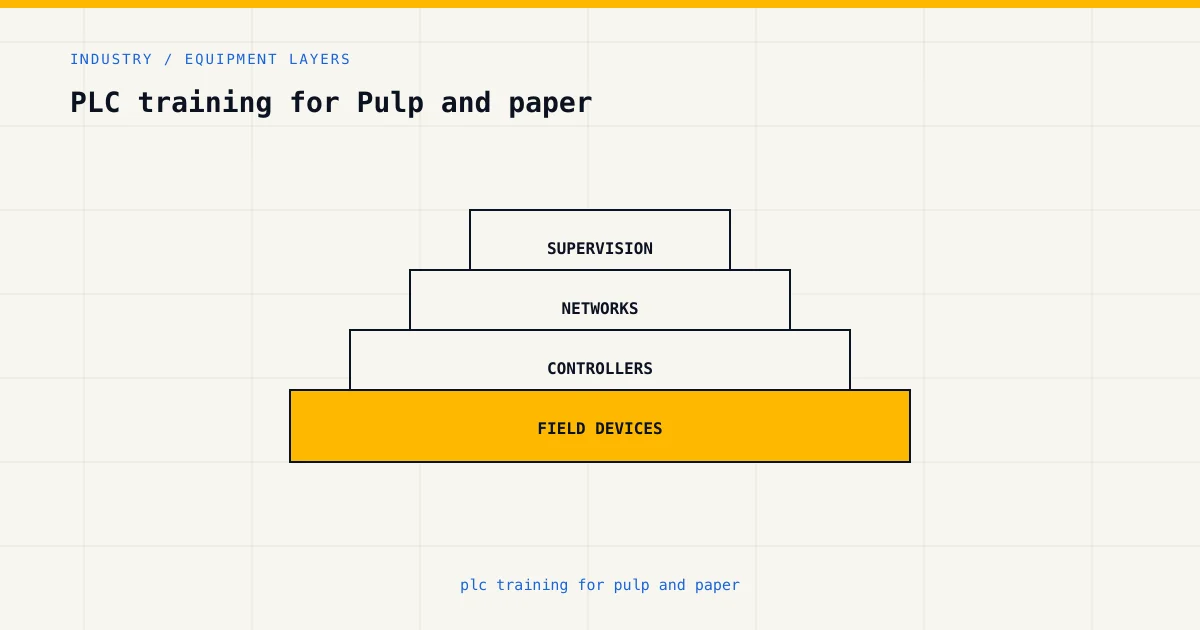

A station PLC, a distributed control system, a drive and a quality-control system can exchange information while retaining different responsibilities. A useful training diagram identifies each owner and the meaning of its data. A line drawn between two boxes does not establish how a value is scaled, timestamped or validated.

ABB's paper-machine measurement and QCS overview lists measurement areas including weight, moisture and caliper. This provides a primary example of the measurement scope associated with a quality-control system. It is not evidence that ABB supplies every South African mill or that a particular PLC course teaches those instruments.

Ask the target employer for the controller family, engineering version and relevant application libraries. Do not infer a universal Siemens controller and ABB drive combination from the industry label. A specific installed-system requirement is a better reason to choose a platform course than an unsupported national brand-share claim.

When drive-system knowledge is needed, compare the variable-speed-drive training route with the proposed course. Menu navigation, motor fundamentals, feedback interpretation and coordinated motion are different levels of study. A generic PLC class should not imply competence to retune a paper machine's sectional drives.

02

Learn to describe a quality profile accurately

A profile describes a quantity across a defined set of positions or intervals. Before calculating anything, identify what each sample represents, its unit, its validity and the coverage it carries. Five numbers alone do not tell you whether they are equally spaced points, averages over equal-width regions or observations made at different times.

A reported average can hide variation. Two profiles can have the same mean while one is uniform and the other has a substantial spread. A training exercise should ask for more than the average: show the individual values, minimum, maximum and missing coverage so the learner can explain what the summary omits.

Do not confuse a measured profile with a product acceptance specification. A mathematical deviation from an invented target is useful for study, but it is not a recommended mill tolerance. Product requirements and measurement procedures must come from the actual approved specification and responsible specialists.

The analogue scaling and resolution guide supports the earlier step of interpreting a value correctly. A profile calculation cannot repair an incorrect unit conversion or a wrong source mapping. Check those foundations before discussing what the shape of a graph means.

Worked exercise: the same average can hide different profiles

Consider five fictional equal-width regions with basis-weight values of 78, 79, 80, 81 and 82 grams per square metre. For this worksheet, each value is the mean over its region and all regions have valid quality. These assumptions make an ordinary arithmetic average appropriate for the full-width mean.

The sum is 400, giving a mean of 80 grams per square metre. The minimum is 78, the maximum is 82 and the range is 4. Relative to an invented study reference of 80, the deviations are minus 2, minus 1, zero, plus 1 and plus 2. These are mathematical observations, not pass/fail decisions for real paper.

Now compare a second fictional profile: 80, 80, 80, 80 and 80. Its mean is also 80, but its range is zero. A display showing only the mean would make the profiles look equivalent even though their variation differs. A learner should explain this before proposing a summary indicator.

Property	Profile A: 78, 79, 80, 81, 82	Profile B: five values of 80
Mean	80	80
Minimum	78	80
Maximum	82	80
Range	4	0
Largest absolute deviation from study reference 80	2	0

Next mark the middle region in Profile A invalid. The four remaining values still average to 80. That coincidence does not restore the missing measurement. The report should show 80 percent valid width coverage and identify the missing middle region. It must not claim that a complete five-region profile was measured.

An invalid region is not a zero-weight region. Substituting zero into the original five-value average would produce 64, a misleading result for this question. Keep the validity information separate and state whether a summary represents the whole width, only valid coverage or an explicitly identified estimate.

03

Use width weighting when regions have different sizes

Change the worksheet so that the region widths are 1, 1, 2, 1 and 1 arbitrary width units. Give the regions values of 78, 79, 84, 81 and 82. Each value is still defined as the mean over its region, and all values are valid. The middle region now contributes twice as much width as each neighbour.

The weighted sum is 78 plus 79 plus 168 plus 81 plus 82, which equals 488. Total width is 6, so the width-weighted mean is approximately 81.33 grams per square metre. The ordinary average of the five numbers is 80.8. It answers a different question because it gives equal importance to regions with unequal width.

The weighting rule depends on the representation. If values are point samples rather than region means, multiplying them by arbitrary widths does not automatically produce a justified full-width average. The measurement system's sampling and reconstruction method matters. The exercise explicitly provides region means to keep that ambiguity out of the arithmetic.

Reject non-positive widths in this fixture. Keep a missing value invalid rather than guessing it from neighbouring regions. If every region is invalid, the valid-width mean is unavailable because its denominator is zero. Display that state clearly rather than returning a plausible default number.

Test equal-width and unequal-width cases separately. Also test a valid region whose value happens to be zero, even if that value would be unusual in an intended application. The mathematical function's input policy and the process's valid operating range are different layers, and the learner should state both rather than silently conflating them.

Check units with a separate fictional mass-rate calculation

Suppose a classroom sheet model has uniform basis weight of 80 grams per square metre, width of 2 metres and speed of 100 metres per minute. The area passing the reference line is 200 square metres per minute. Multiplying by basis weight gives 16,000 grams per minute, or 16 kilograms per minute.

This is a dimensional calculation under stated assumptions. It does not establish measured mill production, moisture correction, trim loss, saleable output or measurement accuracy. A learner should identify those missing requirements before calling the number an actual production result.

Check each unit cancellation: metres of width multiplied by metres per minute gives square metres per minute; grams per square metre then gives grams per minute. If speed is supplied in metres per second, convert the time unit deliberately. A number that looks reasonable is not enough evidence that the conversion is correct.

The instrumentation learning simulator can support selected signal and measurement exercises. Verify its supported scope before choosing a task. The profile and sheet calculations here do not claim a native paper QCS interface or a calibrated paper-testing instrument.

04

Interpret trends before changing a control setting

A useful training trend names the variable, unit, source, time base and quality state. If several curves are compared, verify that they refer to compatible timestamps and conditions. A delayed quality measurement should not be treated as an instantaneous response to the most recent displayed controller change without considering the measurement path.

Separate a changed target from a disturbance and from a changed measurement definition. If an average changes because a region becomes invalid, that is different from the underlying measured values changing. A learner should be able to reproduce the calculation and explain which event changed the displayed result.

Do not infer the cause of a web break or quality excursion from one graph alone. Tension, material properties, equipment condition, measurement issues and other process factors may require specialist investigation. Record what the evidence supports and what remains uncertain instead of applying a universal diagnosis.

For introductory feedback study, use the PID learning simulator and describe the selected educational model. A model response is useful for learning concepts; it is not a paper-machine tuning recommendation or evidence of expected savings at a mill.

Keep drive and process changes within the relevant authorised workflow. A training page should not recommend retuning references simply because a problem appeared after maintenance. First establish what changed, which configuration is active and what measurements can distinguish the possible explanations.

Investigate a QCS-to-display discrepancy

Start with a clear statement: which measured value differs from which displayed value, for which region and time? Record whether the values are raw observations, filtered results, region means or full-width summaries. A disagreement between differently defined quantities may be expected rather than a defect.

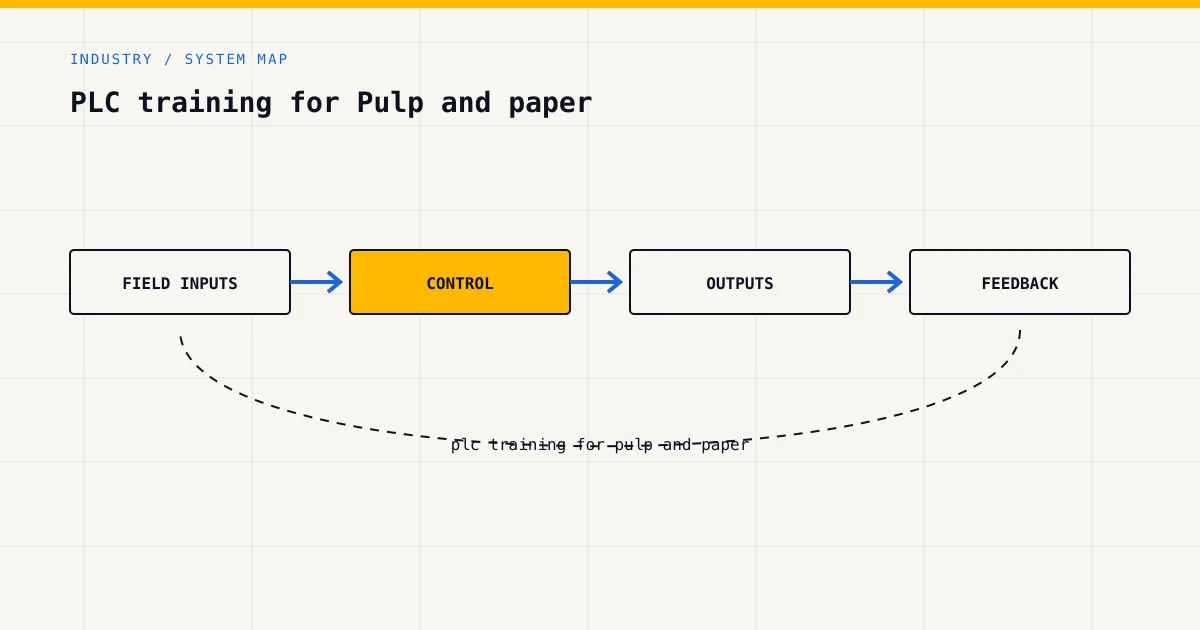

Trace the value through the measurement source, interface mapping, controller representation and HMI. Check units and quality at every boundary. A valid number on the source screen can become misleading if the receiving system ignores its validity flag or associates it with the wrong region.

Use deliberately distinctive fictional values to test mapping. A flat profile of five identical values will not expose a reversal of region order. The ascending 78-to-82 fixture will. A learner can show the expected order and verify each destination before testing summaries.

The HMI tag-binding guide explains how to investigate a plausible but incorrect display. For a paper-related portfolio, retain the wrong mapping and the corrected mapping as test cases. Document the evidence rather than simply saying that the HMI was fixed.

If communication is interrupted, make stale or missing information visible according to the stated application policy. A frozen trend can look stable. The learning task should distinguish stable valid measurement from an unavailable source, and test what happens when current data returns.

05

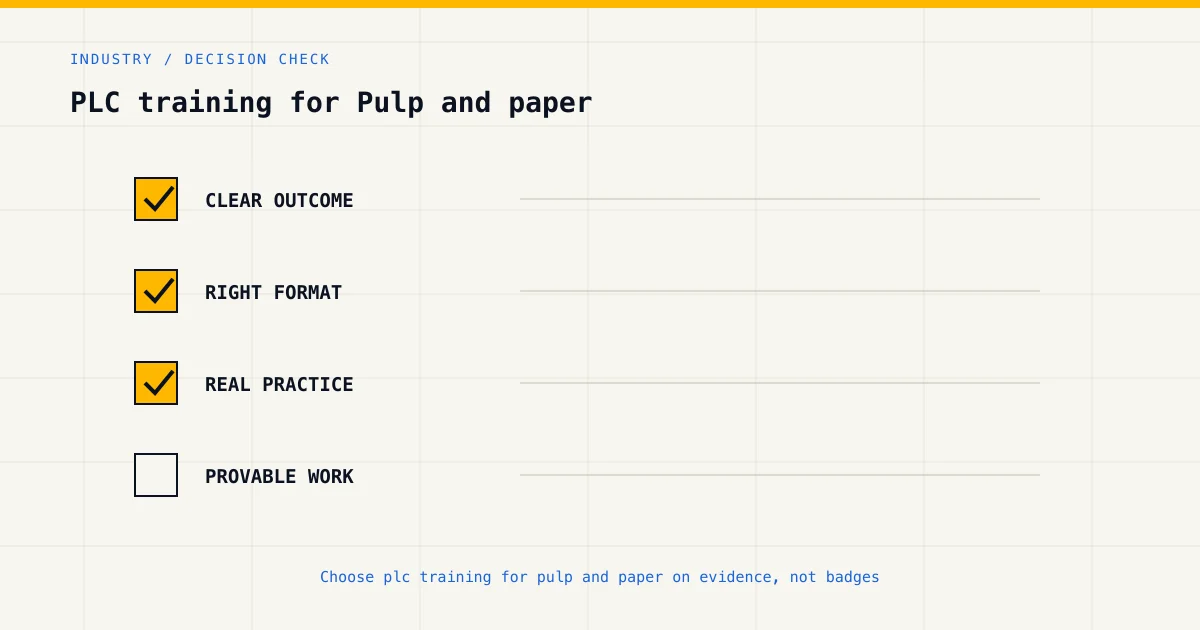

Evaluate a pulp-and-paper automation course

Ask for the course's practical brief and prerequisites. A relevant beginner assessment might cover signal tracing, a small sequence and a measurement summary with invalid data. A specialist course should identify the installed platform, equipment or application system it assumes. These are different levels of study, not interchangeable labels.

Confirm individual access to the engineering environment and whether learners diagnose an unfamiliar project. Ask how feedback is given after a failed case and whether students can repeat the exercise. A demonstration performed by the instructor is not the same evidence as independent practical work.

For a drive or quality-measurement course, request the manufacturer, system generation and assessed activities. Establish whether the course teaches concepts, configuration, maintenance or commissioning. Do not assume the most advanced advertised topic receives enough practical time to support independent work afterwards.

Compare the complete cost in rand, including VAT treatment, software access, equipment time, assessments and travel. Request a dated quotation and clarify any accommodation or laboratory requirements before booking study leave. Avoid using a generic online subscription price as a proxy for specialist classroom training.

If certification or accreditation is advertised, ask for the exact awarding body and programme information. Attendance, a provider assessment, vendor certification and a recognised qualification have different meanings. Verify the specific claim relevant to the employer or institution rather than relying on the word certificate alone.

Build a portfolio around the profile worksheet

Include the equal-width profiles, the invalid-middle-region case and the unequal-width fixture. Show the calculations and the expected display labels. Explain why the same average can accompany different variation and why the missing region remains visible even when the remaining average is unchanged.

Add a signal dictionary with region identity, unit, validity and width. State whether values are point samples or region means. A reviewer should not need to infer that assumption from the formula. Include a diagram that connects each region to its displayed position.

Show one deliberate failure, such as reversing the region order or treating invalid data as zero. Record which test exposes it and how the corrected implementation behaves. This creates a more informative learning record than a screenshot of a single successful average.

Write a handover with the input format, initial state, rounding rule and limitations. Use fictional data and your own diagrams. A credible educational project does not require confidential mill drawings, production trends or customer specifications.

When discussing the project in an interview, distinguish the mathematical checks from practical mill experience. The South African PLC programmer salary guide explains how to assess role and salary evidence without treating a certificate or a short portfolio as a guaranteed pay band.

Questions about paper-mill PLC training

Should I learn TIA Portal first for pulp and paper work?

Choose from the actual target system or the assessed course equipment. Do not assume every mill uses the same controller or engineering generation. If the system is unknown, begin with program reading, measurement units, data quality and testing, then select a vendor course that addresses a documented need.

Is QCS training the same as PLC programming?

No. Quality measurement and control can involve specialist instruments, profiles and application software. PLC programming may support interfaces and equipment logic. Ask the provider which layer the practical assessment covers and what additional measurement or platform knowledge it expects.

What can I practise online before attending a mill course?

You can practise sequence reasoning, signal mapping, profile calculations and interpretation of missing data. Use explicit fictional assumptions and test cases. Online success does not establish competence to calibrate a quality sensor, modify a real paper machine or tune a coordinated drive system.

Why can a profile average stay unchanged after a sensor becomes invalid?

The remaining values can happen to have the same mean as the original set, as in the five-region fixture. The report still has less valid coverage. Displaying the unchanged average without the missing region would conceal that loss of information.

Does a process-control course teach paper-machine tuning?

Check the actual syllabus and supervised practical scope. An introductory feedback model can teach concepts, while tuning a real installation requires system-specific knowledge and authorised procedures. Do not infer that competence from the presence of a PID exercise in a general course.

How do I compare opportunities in Durban and Mpumalanga?

Compare actual roles, worksite, equipment, supervision and travel terms. Mill locations provide useful context but do not establish vacancies or a standard salary. Use current employer information and written course details to assess the practical fit with your experience and circumstances.

06

Choose a specific learning outcome

Write one question that your next project must answer, such as whether an invalid region can be mistaken for valid zero or whether a region-order error is detectable. Prepare the expected evidence before selecting software or booking a course.

Complete the calculation, exception cases and handover. Use the gaps you discover to choose further instrumentation, platform or process instruction. This gives a trainer or employer a concrete record to review and keeps the learning claim matched to the work actually demonstrated.
